Are you looking for a precise and effortless guillotine shear that can cut entire metal plates thicker than 10mm?
Our QC11Y Series Hydraulic Guillotine Shear is perfect for you.
The QC11Y Series Shear is equipped with advanced technology, comes standard with an E21S control system, powerful hydraulic cylinders, and sharp blades that can be adjusted for cutting angle to ensure that every cut is precise and accurate.
DETAILS IMAGES
 |

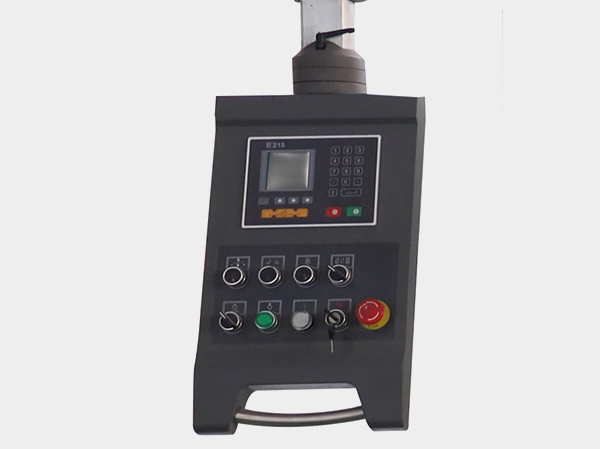

E21S Controller (Standard) * Rear stop control, capable of controlling both standard motors and inverters; |
 |

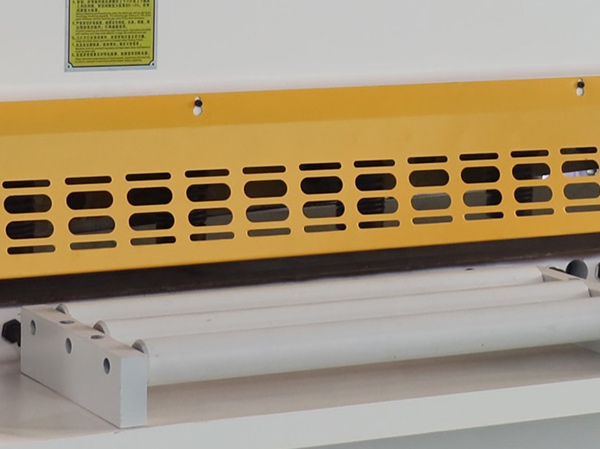

Feeding Worktable The feeding slide is equipped with a versatile movable roller, allowing for smooth advancement of the plate and easy adjustment of the shearing position during feeding. This saves time and labor, facilitates convenient disassembly and installation of the ball, as well as enables effortless maintenance. |
 |

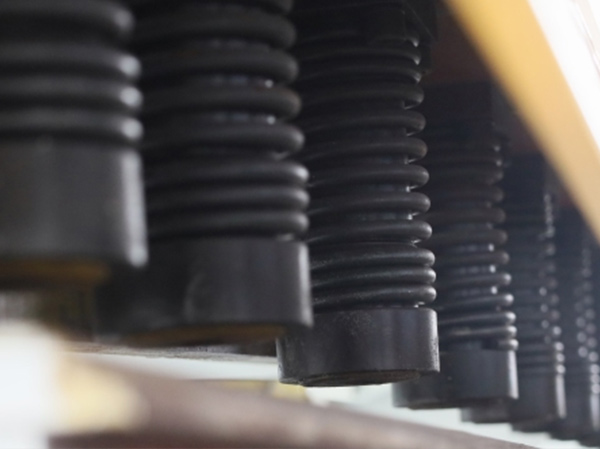

Press Oil Cylinder The spring is made of 60Si2Mn alloy steel, and the shock pad is thickened with polyurethane. The compressive base, bottom plate, and oil seal are all thickened and imported. |
 |

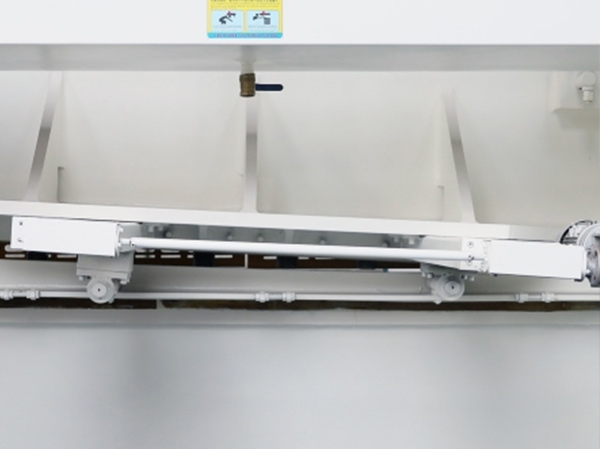

Back gauge Blade The lower part of the tool holder is equipped with a back-up roller, which incorporates an eccentric shaft sleeve. This sleeve is driven by the motor reducer to rotate, thereby adjusting the clearance between the upper and lower blades. |
 |

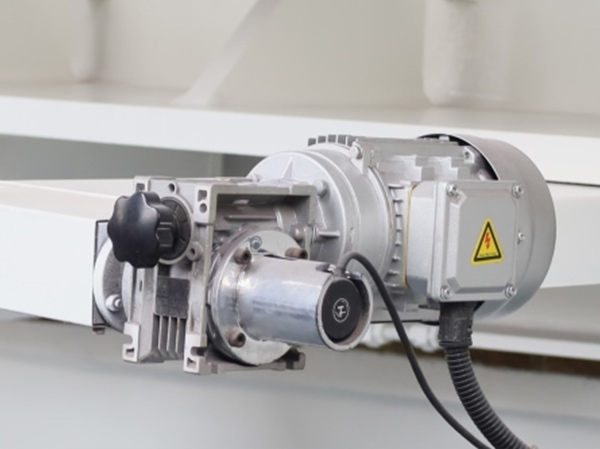

Back gauge motor The electric rear stop device is equipped with an adjustable inverter that allows for both fast and slow adjustments. Additionally, it is equipped with a user-friendly numerical control device that offers forward, backward and positioning functions. |
 |

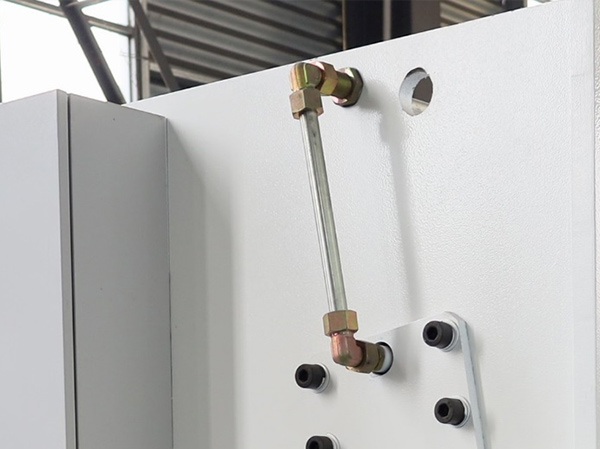

High Pressure Jacketed Tube Connector The connection between the seamless steel pipe and sleeve joint is characterized by high-pressure resistance, ensuring no oil leakage and facilitating easy maintenance. |
 |

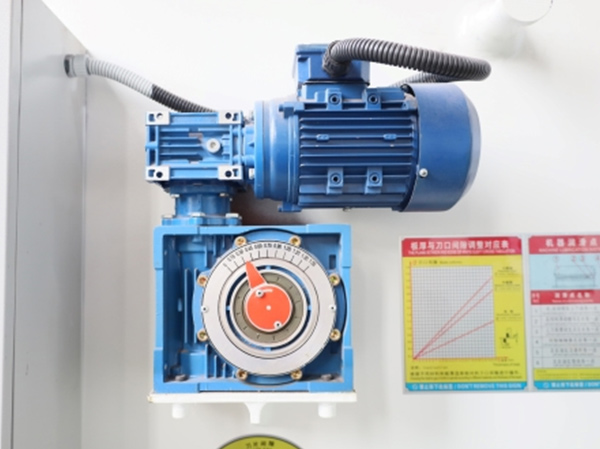

Electric Blade Gap Adjustment The motor and reducer are utilized for precise and rapid control of blade clearance adjustment. |
 |

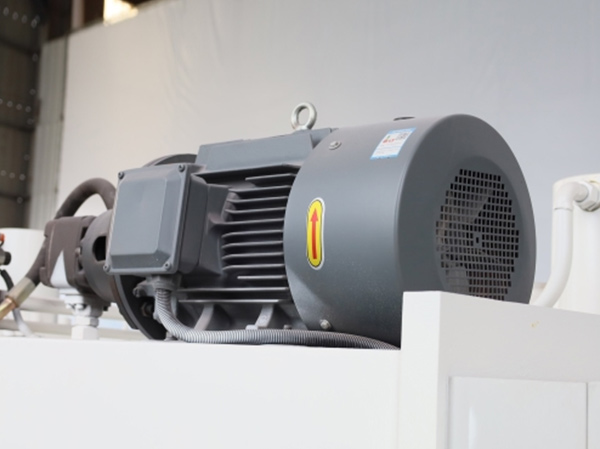

Main Motor The high-capacity main motor provides ample, robust power. |
| Model | Cutting Thickness | Cutting Length | Number of stroke times | Cutting Angle | Backgauge Range | Main Power |
| Type | (mm) | (mm) | (T/Min) | ( ° ) | (mm) | (Kw) |
| 4x2500 | 4 | 2500 | 16 | 0.5~1.5 | 20~600 | 5.5 |
| 4x3200 | 4 | 3200 | 14 | 0.5~1.5 | 20~600 | 5.5 |
| 4x4000 | 4 | 4000 | 10 | 0.5~1.5 | 20~600 | 5.5 |
| 4x6000 | 4 | 6000 | 8 | 0.5~1.5 | 20~600 | 7.5 |
| 6x2500 | 6 | 2500 | 18 | 0.5~1.5 | 20~600 | 7.5 |
| 6x3200 | 6 | 3200 | 15 | 0.5~1.5 | 20~600 | 7.5 |
| 6x4000 | 6 | 4000 | 12 | 0.5~1.5 | 20~600 | 7.5 |
| 6x5000 | 6 | 5000 | 10 | 0.5~1.5 | 20~600 | 11 |
| 6x6000 | 6 | 6000 | 7 | 0.5~1.5 | 20~600 | 11 |
| 8x2500 | 8 | 2500 | 13 | 0.5~1.5 | 20~600 | 11 |
| 8x3200 | 8 | 3200 | 11 | 0.5~1.5 | 20~600 | 11 |
| 8x4000 | 8 | 4000 | 9 | 0.5~1.5 | 20~600 | 11 |
| 8x5000 | 8 | 5000 | 7 | 0.5~1.5 | 20~600 | 15 |
| 8x6000 | 8 | 6000 | 6 | 0.5~1.5 | 20~600 | 15 |
| 10x2500 | 10 | 2500 | 12 | 0.5~2 | 20~600 | 15 |
| 10x3200 | 10 | 3200 | 10 | 0.5~2 | 20~600 | 15 |
| 10x4000 | 10 | 4000 | 9 | 0.5~2 | 20~600 | 15 |
| 10x6000 | 10 | 6000 | 6 | 0.5~2 | 20~600 | 15 |
| 12x2500 | 12 | 2500 | 12 | 0.5~2.5 | 20~600 | 18.5 |
| 12x3200 | 12 | 3200 | 10 | 0.5~2.5 | 20~600 | 18.5 |
| 12x4000 | 12 | 4000 | 9 | 0.5~2.5 | 20~600 | 18.5 |
| 12x5000 | 12 | 5000 | 7 | 0.5~2.5 | 20~600 | 18.5 |
| 12x6000 | 12 | 6000 | 6 | 0.5~2.5 | 20~600 | 18.5 |
| 16x2500 | 16 | 2500 | 8 | 0.5~2.5 | 20~600 | 22 |
| 16x3200 | 16 | 3200 | 7 | 0.5~2.5 | 20~600 | 22 |
| 16x4000 | 16 | 4000 | 6 | 0.5~2.5 | 20~600 | 22 |
| 16x5000 | 16 | 5000 | 5 | 0.5~2.5 | 20~600 | 22 |
| 16x6000 | 16 | 6000 | 4 | 0.5~2.5 | 20~600 | 30 |
| 20x2500 | 20 | 2500 | 8 | 0.5~3 | 20~800 | 30 |
| 20x3200 | 20 | 3200 | 7 | 0.5~3 | 20~800 | 30 |
| 20x4000 | 20 | 4000 | 6 | 0.5~3 | 20~800 | 30 |
| 20x5000 | 20 | 5000 | 5 | 0.5~3 | 20~800 | 30 |
| 20x6000 | 20 | 6000 | 4 | 0.5~3 | 20~800 | 30 |
| 25×2500 | 25 | 2500 | 6 | 0.5~3 | 20~800 | 37 |
| 25×3200 | 25 | 3200 | 5 | 0.5~3 | 20~800 | 37 |
| 25×4000 | 25 | 4000 | 5 | 0.5~3 | 20~800 | 37 |
| 25×5000 | 25 | 5000 | 4 | 0.5~3 | 20~800 | 55 |
| 25×6000 | 25 | 6000 | 3.5 | 0.5~3 | 20~800 | 55 |
It is China QC11Y CNC Hydraulic Guillotine Shearing Machine manufacturers and OEM/ODM QC11Y CNC Hydraulic Guillotine Shearing Machine factory, a key backbone enterprise in the forging machinery industry. The company is located in Hai'an Binhai Industrial Zone, Jiangsu Province, in the economically developed Yangtze River Delta.
We specializes in the production of "Huaduan" brand series shearing machines, bending machines, plate rolling machines, hydraulic presses, and unwinding and leveling shearing production lines. Products are widely used in the light industry, aviation, shipbuilding, metallurgy, instrumentation, electrical appliances, stainless steel products, construction and decoration industries. Products are exported to Europe, America, Southeast Asia, the Middle East and other countries and regions.
Our company has many domestic shearing, folding, rolling, hydraulic presses, leveling shearing production lines and other professional, research and development manufacturing product quality, technical level is at the forefront of the industry; Huaduan Machine Tool integrates advanced technologies at home and abroad with advanced awareness, new concepts and innovative spirit, and continuously developing industry products, laying a solid foundation for "Huaduan" to create a world-renowned brand in the forging industry.
Industry Experience
Factory Cover
Building Area
Annual Output Value
The control system of the CNC laser cutting machine is its core part, which determines the accuracy, efficiency and ease of operation of the machine. The interface and functions of the system directly...
READ MOREBy integrating advanced intelligent systems, the Double-Table Fiber Optic Laser Cutting Machine can significantly improve cutting efficiency, reduce material waste and improve overall processing quali...
READ MOREThe requirements for single-table fiber laser cutting machines in terms of high efficiency, low energy consumption and automation are very important, especially in modern manufacturing. These requirem...
READ MOREThe QC11Y CNC Hydraulic Guillotine Shearing Machine represents the pinnacle of precision and efficiency in metal plate cutting technology. Designed for high-performance operations, this machine excels in cutting metal plates thicker than 10mm with unmatched accuracy and reliability. Its robust construction and advanced features make it an essential tool for industries that demand superior cutting capabilities and operational efficiency.
Superior Construction and Durability: The QC11Y Shear features a frame and tool rest crafted from high-strength steel structural components. The upper tool rest is tempered to eliminate internal stress, resulting in enhanced rigidity and stability. This durable construction ensures the machine performs consistently even under heavy-duty conditions, providing accurate and reliable cuts over extended periods.
Advanced Shearing Mechanism: At the core of the QC11Y is its advanced hydraulic system, which drives the tool holder along precision guide rails. Powered by robust hydraulic cylinders, the shearing motion is smooth and accurate, delivering clean cuts with every operation. The back gauge blade system, featuring a back-up roller with an eccentric shaft sleeve, is motor-driven for precise adjustment of the blade clearance. This ensures optimal cutting gaps for varying material thicknesses and enhances the machine's overall precision.
State-of-the-Art Control System: Equipped with the E21S Controller, the QC11Y offers sophisticated control over its operations. This controller manages rear stop adjustments with both standard motors and inverters, supports dual programmable digital outputs, and includes an efficient workpiece counting function. It stores up to 40 programs, each with 25 work steps, and features a user-friendly interface with one-click backup and recovery of parameter settings. The LCD screen supports seamless English-Chinese conversion, making it accessible and easy to use for operators in diverse environments.
Electric Blade Gap Adjustment: The shear incorporates an electric blade gap adjustment system, utilizing a motor and reducer for rapid and precise control of the blade clearance. This feature allows for quick adjustments, facilitating accurate cutting and reducing manual effort. The system enhances operational efficiency by streamlining the adjustment process.
Efficient Feeding System: The QC11Y includes a sophisticated feeding worktable with a movable roller, designed to facilitate smooth advancement of metal plates. This system allows for easy adjustment of the shearing position during feeding, saving time and labor. The design also simplifies maintenance with convenient disassembly and installation of the roller ball.
Reliable Hydraulic System: The hydraulic system of the QC11Y is engineered for performance and durability, featuring high-pressure jacketed tube connectors that prevent oil leakage and ensure easy maintenance. The system is equipped with overload overflow safety protection and provides a clear display of oil level height, enabling continuous operation under rated load for up to 16 hours without interruption.
Powerful Main Motor: A high-capacity main motor powers the QC11Y, delivering ample and reliable power for heavy-duty cutting tasks. This motor ensures consistent performance and enhances the shear's ability to handle demanding industrial applications with ease.
Precision Back Gauge Motor: The back gauge motor system features an adjustable inverter for both fast and slow adjustments, complemented by a numerical control device offering forward, backward, and positioning functions. This advanced system provides precise control over the rear stop, enhancing the machine's versatility and accuracy.
The QC11Y CNC Hydraulic Guillotine Shearing Machine is designed to meet the highest standards of precision and efficiency. Its advanced features, robust construction, and superior performance make it an invaluable asset for any metalworking operation, delivering reliable and high-quality cutting results for a wide range of applications.
