QC12Y CNC Hydraulic Swing Beam Shearing Machine
Shearing Machine

QC12Y CNC Hydraulic Swing Beam Shearing Machine

Are you looking for a precise and user-friendly metal sheet cutting machine?
Our QC12Y series shears are exactly what you need.
The QC12Y series shears are equipped with advanced technology, a standard E21S control system, sharp blades, and an adjustable cutting angle to ensure that every cut is precise and accurate.

Contact Us
PREV：No previous article
NEXT：QC11Y CNC Hydraulic Guillotine Shearing Machine
  • QC12Y CNC hydraulic Swing Beam Shearing Machine

    QC12Y CNC hydraulic Swing Beam Shearing Machine

    1. The frame and tool rest are constructed from steel structural components, with the upper tool rest being tempered to eliminate internal stress, resulting in enhanced rigidity and improved organizational stability.
    2. Under the action of the oil cylinder, the tool holder moves along the guide rail to achieve shearing motion.
    3. The rear stopper is driven by a ball screw, while motor-driven adjustment enables precise positioning and ensures fast and smooth operation of the stopper distance.
    4. The material pressing mechanism consists of a set of material-pressing oil cylinders that overcome spring tension through pressure oil during operation. After completion of shearing, reset is achieved using spring tension.
    5. To facilitate cutting wider sheet materials, a front supporting frame is provided with one featuring a scale and side positioning stop.
    6. The hydraulic system incorporates overload overflow safety protection, and a clear and intuitive display of oil level height, enabling continuous operation under rated load for 16 hours without leakage or interruption for stable processing with high precision.

    More Details
    DETAILS IMAGES

    DETAILS IMAGES

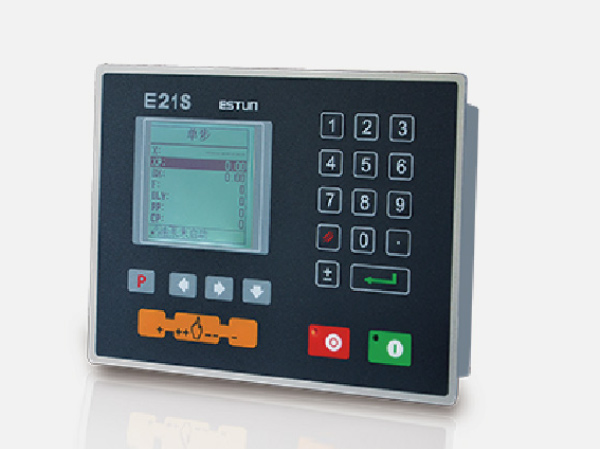

    E21S Controller (ESTUN)

    * HD LCD screen, with English and Chinese language optional, one-page display programming parameters, writing programs more fast and convenient.
    * Back gauge: intelligent positioning, can also be manually adjusted according to the need to remove the mechanical hand positioning device.
    * Shear stroke: Built-in shear time relay, simple operation, cost saving.
    * Shear Angle: Built-in shear Angle adjustment function, eliminating the Angle indicator and button.
    * Blade gap: encoder feedback, timely display knife-edge gap size, easy to operate.
    * With a one-click parameter backup and recovery function, parameters can be restored at any time as required, reducing
    maintenance costs.
    * All buttons on the panel are micro switches, which have been strictly tested by EMC, high and low temperature, vibration, etc., to ensure the stability and service life of the product.
    * Passed CE certification to meet the needs of overseas markets.

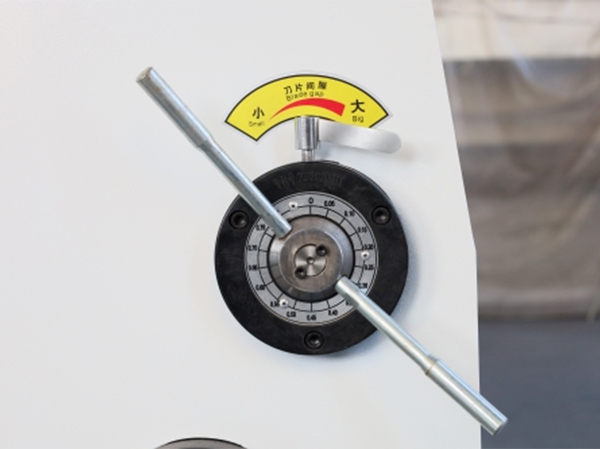

    Blade Gap Adjustment

    By adjusting the blade clearance, it is possible to achieve precise cutting of sheet materials with varying thicknesses. Inadequate clearance can result in post-cutting burrs or even prevent successful cutting, leading to material deformation. Similarly, when dealing with thick plates, insufficient gaps may exert excessive shear force on the blade, accelerating its wear rate and potentially causing breakage.

    High-Pressure Jacketed Tube Connector

    The connection between the seamless steel pipe and sleeve joint is characterized by high-pressure resistance, ensuring no oil leakage and facilitating easy maintenance.

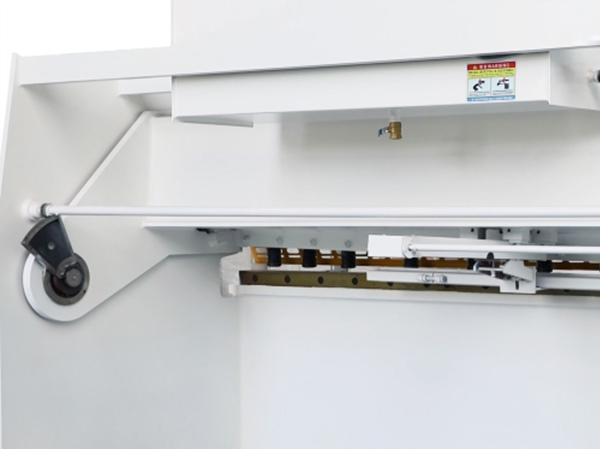

    Feeding Worktable

    The feeding slide is equipped with a versatile movable roller, allowing for smooth advancement of the plate and easy adjustment of the shearing position during feeding. This saves time and labor, facilitates convenient disassembly and installation of the ball, as well as enables effortless maintenance.

    Press Oil Cylinder

    The spring is made of 60Si2Mn alloy steel, and the shock pad is thickened with polyurethane. The compressive base, bottom plate, and oil seal are all thickened and imported.

    Back Gauge

    The tool rest moves in an arc, with the support shaft serving as the center for reciprocating pendulum motion to complete the shearing operation.

    Back Gauge Motor

    The electric rear stop device is equipped with an adjustable inverter that allows for both fast and slow adjustments. Additionally, it is equipped with a user-friendly numerical control device that offers forward, backward and positioning functions.

    Main Motor

    The main motor possesses a high power output, ensuring ample and robust pow.
